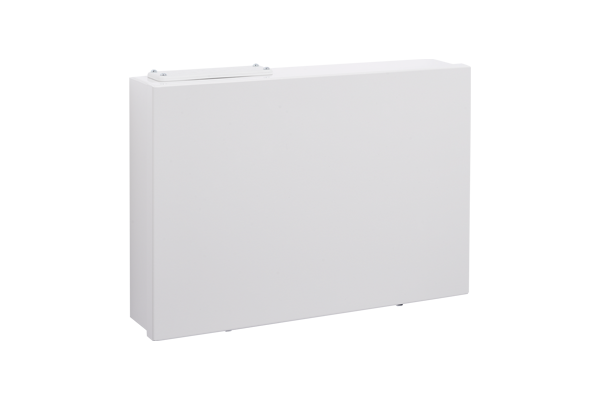

Power supply 4466
Features
- Monitored for mains, charging, and communication errors
- Space for two expansion boards of type 4464 and 4585
- Built in short circuit isolator
- Automatically 4 A output at fire alarm
- Space for 7.2 Ah batteries inside housing
- Up to 42 Ah in external battery cabinet
- Tested and approved according to EN54-4,
- EN54-17 and EN54-18
- VdS approval: G219025
- CPR: 0786-CPR-21627
Specifications
- Voltage: 230 V AC
- Operating temperature: - 5 to +40 °C
- Ambient humidity: < 95%
- Dimensions: 298 x 424 x 95 mm
- Weight: 4.7 kg including batteries
- IP30
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, COM-loop repeater 4585 | 2023-06-19 | 580.74 KB | EN |
| Leaflet, 2 voltage outputs board 4464 | 2023-06-19 | 552.33 KB | EN |
| Norwegian: Produktdatablad, Ekstern strømforsyning 4466 | 2024-04-01 | 118.47 KB | NO |
| Ficha de producto, Fuente de alimentación externa 4466 | 2024-04-01 | 120.19 KB | Spanish |
| Leaflet, External power supply 4466 | 2024-04-01 | 117.75 KB | EN |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | NO |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
Declaration of Performances
| Description | Release date | File size | Language |
|---|---|---|---|
| DoP, External power supply 4466 | 2019-08-22 | 237.07 KB | EN |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Descripción técnica, Tarjeta de 2 salidas de tensión 4464 | 2021-03-25 | 831.12 KB | Spanish |
| Descripción técnica, Repetidor bucle com 4585 | 2021-03-25 | 774.9 KB | Spanish |
| Descripción técnica, Fuente de alimentación externa supervisada bucle com 4466 | 2024-08-29 | 1.98 MB | Spanish |
| Technical description, COM-loop repeater 4585 | 2022-06-14 | 1.05 MB | English |
| Technical description, 2 voltage outputs board 4464 | 2022-06-14 | 1.1 MB | English |
| Technical description, External power supply 4466 | 2024-08-29 | 1.98 MB | English |
BIM-data
| Description | Release date | File size | Language |
|---|---|---|---|
| BIM models, I/O units | 2023-07-05 | 7.12 MB | |
| BIM family models, I/O units | 2023-07-05 | 3.78 MB | |
| User manual, BIM Library | 2024-02-20 | 2.92 MB | EN |
