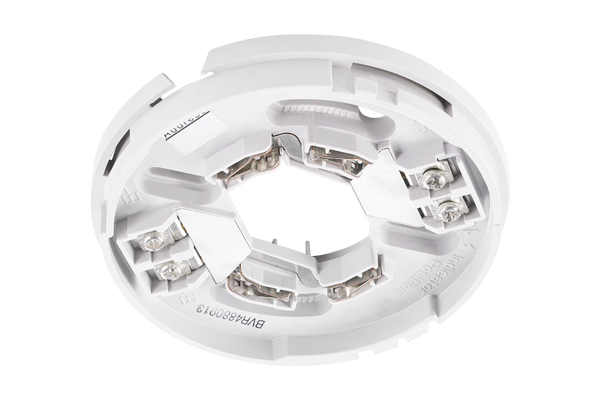

Addressable base 3312
Features
- Common base for addressable detectors
- Screw terminals for easy installation also with the thickest cables
- Connectors for external indicator
- Cable entry from top or side
- Recess for label holder included
- CE
- Compliant with EN54-5 and EN54-7
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: 102 x 15 mm
- Weight: 52 g
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, Analog base 3312 | 2023-06-08 | 202.12 KB | English |
| Ficha de producto: Base analógica 3312 | 2023-06-08 | 201.74 KB | Spanish |
| Produktdatablad, Analog sokkel 3312 | 2023-06-08 | 201.59 KB | Norwegian |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, Analog base 3312, 3312F and 3312FL | 2021-10-31 | 738.56 KB | English |
Pictures
| Description | Release date | File size | Language |
|---|---|---|---|
| Picture, 3312, Analog Base, transparent | 2021-01-20 | 9.13 MB | |
| Picture, 3312, Analog base | 2018-01-16 | 4.01 MB |
