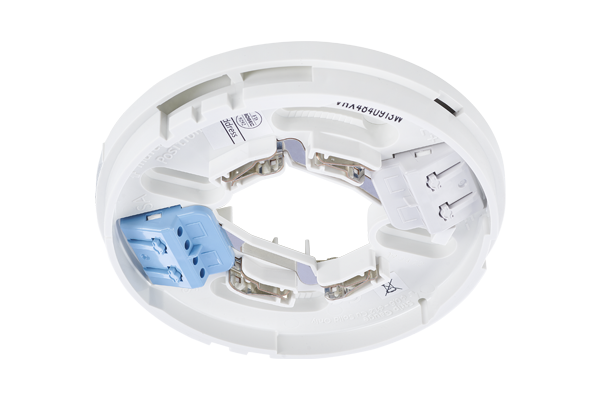

Addressable base with fast connectors 3312FL
Features
- Common base for addressable detectors
- Fast connectors for quickest installation available
- Fast connectors also for external indicator
- Cable entry from top or side
- Recess for label holder included
- CE
- Compliant with EN54-5 and EN54-7
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: Ø 102 x 15 mm
- Weight: 47 g
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, Analog base 3312FL | 2023-06-08 | 234.31 KB | EN |
| Norwegian: Produktdatablad, Analog sokkel 3312FL | 2023-06-08 | 254.5 KB | NO |
| Ficha de producto, Base analógica 3312FL | 2024-05-22 | 235.74 KB | ES |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, Analog base 3312, 3312F and 3312FL | 2021-10-31 | 738.56 KB | EN |
