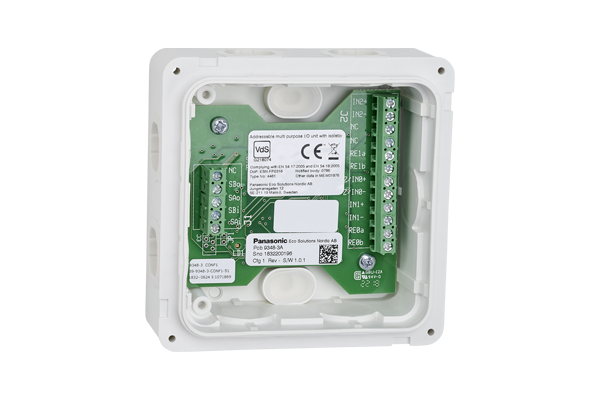

Multipurpose I/O unit 4461
Features
- Built-in isolator
- Supports auto-addressing
- Zone line input for conventional detectors
- Monitored general input
- Isolated Optocoupler input
- Two programmable relay outputs
- IP65 housing
- Approved according to EN54-17 and EN54-18
- VdS Approval: G218074
- CPR: 0786-CPR-21579
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: 110 x 110 x 49 mm
- Weight: 188 g
- IP rate: IP65
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Produktdatablad, Adressable multifunksjons I/O-enhet med isolator 4461 | 2024-05-26 | 332.38 KB | Norwegian |
| Ficha de producto: Unidad de E/S multipropósito direccionable con aislador 4461 | 2024-05-26 | 331.36 KB | Spanish |
| Leaflet, Addressable multipurpose I/O unit with isolator 4461 | 2024-05-26 | 331.59 KB | English |
Catalogues
| Description | Release date | File size | Language |
|---|---|---|---|
| Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | Norwegian |
| Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | English |
| Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | Spanish |
Declaration of Performances
| Description | Release date | File size | Language |
|---|---|---|---|
| DoP, Addressable multipurpose I/O unit with isolator 4461 | 2019-05-19 | 98.32 KB | EN |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Descripción técnica, Unidad de e/s multipropósito direccionable con aislador 4461 | 2024-08-22 | 1.02 MB | Spanish |
| Technical description, Addressable multipurpose I/O unit with isolator 4461 | 2024-08-21 | 910.23 KB | EN |
BIM-data
| Description | Release date | File size | Language |
|---|---|---|---|
| BIM models, I/O units | 2023-07-05 | 7.12 MB | |
| BIM family models, I/O units | 2023-07-05 | 3.78 MB | |
| User manual, BIM Library | 2024-02-20 | 2.92 MB | English |
