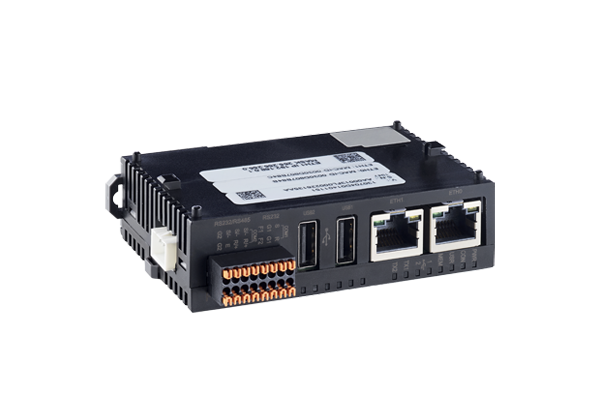

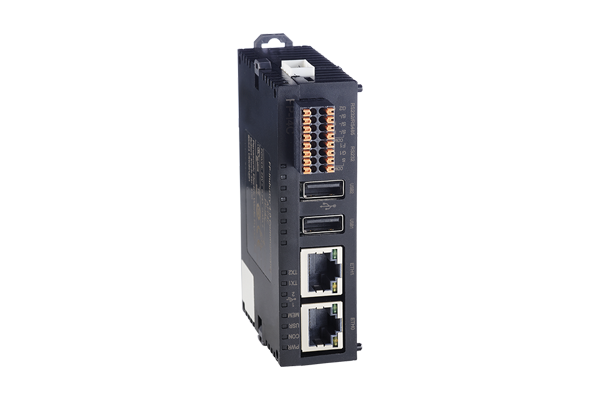

Gateway 5088


Features
- Remote monitoring and control of an EBL system from all kind of terminals
- Highest security with up to 2.048 bit encryption and support for Open VPN
- Automatic e-mails at predetermined events; fire, service, fault, etc.
- Gateway to security- and building management systems via several included protocols:
- Modbus
- OPC UA
- ESPA 4.4.4
- SIA
- EBLNet
- EBLTalk
Specifications
- Operating temperature: 0 to +58 °C
- Ambient humidity: < 85%
- Dimensions: 90 x 25 x 74 mm
- Weight: 86 g
- CE
Leaflets
Description | Release date | File size | Language |
---|---|---|---|
Leaflet, Gateway 5088 | 2022-09-07 | 218.35 KB | EN |
Ficha de producto, Gateway 5088 | 2022-09-07 | 226.72 KB | ES |
Norwegian: Produktdatablad, Gateway 5088 | 2022-09-07 | 219.6 KB | NO |
Catalogues
Description | Release date | File size | Language |
---|---|---|---|
Panasonic fire alarm catalog, Norwegian | 2023-05-22 | 8.6 MB | NO |
Panasonic fire alarm catalog | 2023-05-22 | 8.59 MB | EN |
Panasonic fire alarm catalog, Spanish | 2023-05-22 | 8.66 MB | ES |
Gateway brochure | 2024-03-21 | 2.32 MB | EN |
Spanish, Gateway 5088, Conectividad y Software | 2024-02-12 | 1.53 MB | ES |
Technical description
Description | Release date | File size | Language |
---|---|---|---|
Descripción técnica, Gateway – Pasarela de Comunicación 5088 | 2024-10-06 | 2.13 MB | ES |
Technical description, EBL Talk Protocol in Web-server / Gateway | 2020-11-18 | 486.12 KB | EN |
Technical description, ESPA 4.4.4 Protocol in Web-server / Gateway | 2022-11-18 | 729.71 KB | EN |
Technical description, Modbus protocol in Web-server / Gateway | 2020-11-18 | 472.52 KB | EN |
Technical description, SIA Protocol in web-server 1598 / Gateway 5088 | 2024-04-11 | 958.19 KB | EN |
Technical description, Gateway 5088 | 2024-10-06 | 2.3 MB | EN |
Technical description, OPC UA Gateway for EBLWeb in Gateway 5088 | 2023-08-27 | 1.21 MB | EN |
