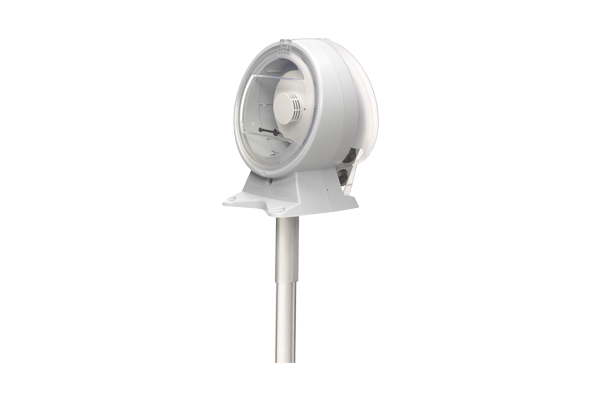

Uniguard-4 duct detector chamber 6377
Features
- One-pipe air sampling system Uniguard Superflow
- Patented venturi pipe and duct housing
- Easy service and maintenance
- Test hole in cover
- The venturi pipes are available in two lengths; 0.6 and 1.06 meter
- Venturi pipes with built-in fan
- Designed to comply with EN54-27
Specifications
- Operating temperature: - 10 to +50 °C
- Ambient humidity: < 95%
- Dimensions: 2280 x 187 x 184 mm
- Weight: 690 g (housing only)
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, Duct detector chamber 6377 | 2024-12-12 | 183.77 KB | English |
| Produktdatablad, Uniguard-4-kanaldetektorkammer 6377 | 2024-12-12 | 184.31 KB | Norwegian |
| Ficha de producto, Uniguard-4 detección en conducto 6377 | 2024-12-12 | 183.74 KB | Spanish |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, Duct detector chamber 6377 | 2025-11-04 | 2.02 MB | English |
Pictures
| Description | Release date | File size | Language |
|---|---|---|---|
| Picture, 6377, Duct detector chamber | 2018-01-16 | 4.26 MB | |
| Picture, 6377, Duct detector chamber, transparent | 2018-01-16 | 9.75 MB |
