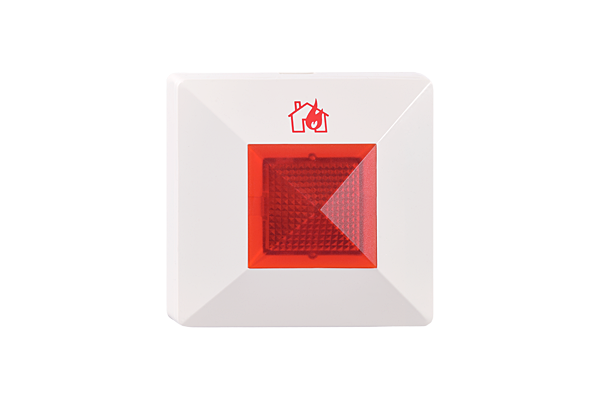

Addressable external indicator (LED) 4418
Features
- Flashing LED
- Low power consumption
- For wall or flush mounting
- Connected to the COM loop
- Supports auto addressing function
- CE
- Advanced mode: Control expression
- Normal mode: Mirrors detector LED
Specifications
- Operating temperature: - 10 to +55 °C
- Ambient humidity: < 95%
- Dimensions: 87 x 87 x 30 mm
- Weight: 63 g
Leaflets
| Description | Release date | File size | Language |
|---|---|---|---|
| Leaflet, External indicator (LED) 4418 | 2023-06-19 | 125.1 KB | English |
| Produktdatablad, Adresserbar ekstern indikator 4418 | 2023-06-19 | 125.46 KB | Norwegian |
| Ficha de producto, Indicador externo (LED) 4418 | 2023-06-19 | 125.49 KB | Spanish |
Technical description
| Description | Release date | File size | Language |
|---|---|---|---|
| Technical description, External indicator (LED) 4418 | 2024-03-04 | 966.45 KB | English |
BIM-data
| Description | Release date | File size | Language |
|---|---|---|---|
| BIM models, External indicators | 2023-07-05 | 7.46 MB | |
| BIM family models, External indicator | 2023-07-05 | 2.36 MB | |
| User manual, BIM Library | 2024-02-20 | 2.92 MB | English |
