PhotoMOS® relays

Latest PhotoMOS® semiconductor technology enables fast, quiet, bounce-free switching in miniature sizes.

PhotoMOS® relays white paper

Bringing reliable and fast switching to future and industries.
Download

PhotoMOS® relays for automotive and industrial applications

PhotoMOS® relays with a MOSFET output enjoy an almost unlimited lifetime if used according to the specifications. Moreover, they are extremely reliable, unaffected by vibration, and their On-resistance remains stable throughout their entire lifetime. In addition to our broad product line-up for the industrial market, automotive-qualified types are also available.

From low level loads to high power switching

RF series for radio frequency use
PhotoMOS® relays

RF series for radio frequency use

Low on-resistance and low output capacitance for applications such as measurement, telecommunications and medical devices.

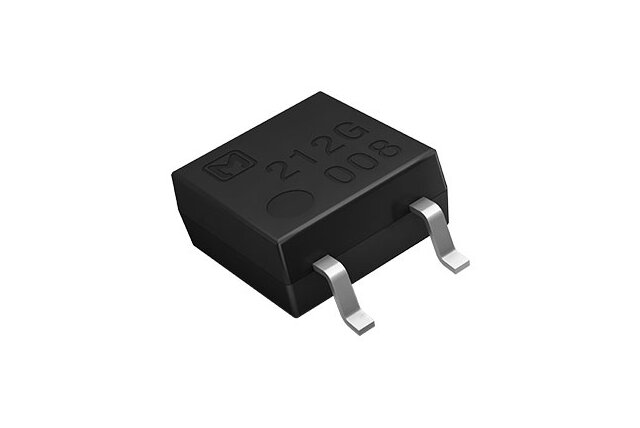

GU series for general use
PhotoMOS® relays

GU series for general use

- Extensive range - Available as 1 Form A or 1 Form B types - DIP4 or SOP4 packaging - ≤600V or ≤2A

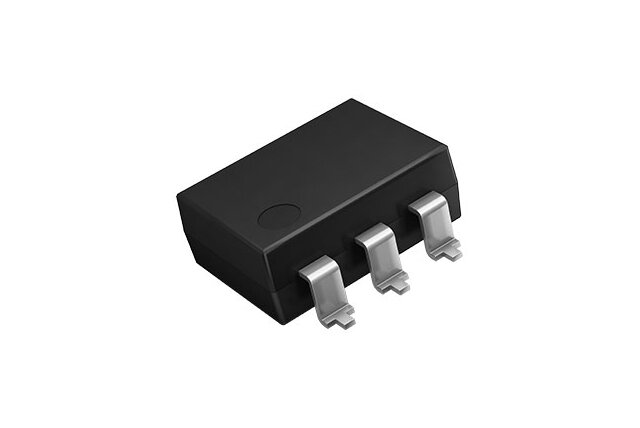

Automotive-qualified PhotoMOS®
PhotoMOS® relays

Automotive-qualified PhotoMOS®

Automotive-grade PhotoMOS relays provide enhanced quality controls.
HE series, High functioned and Economical – low on resistance
PhotoMOS® relays

HE series, High functioned and Economical – low on resistance

Medium power capability for use in industrial applications; wide range of 1 Form A, 1 Form B, 2 Form A and 1 Form A 1 Form B types.
GE series, General use and Economical - with reinforced insulation
PhotoMOS® relays

GE series, General use and Economical - with reinforced insulation

- 5,000Vrms insulation
- Wide range of 1 Form A, 1 Form B, 2 Form A and 1 Form A 1 Form B types.

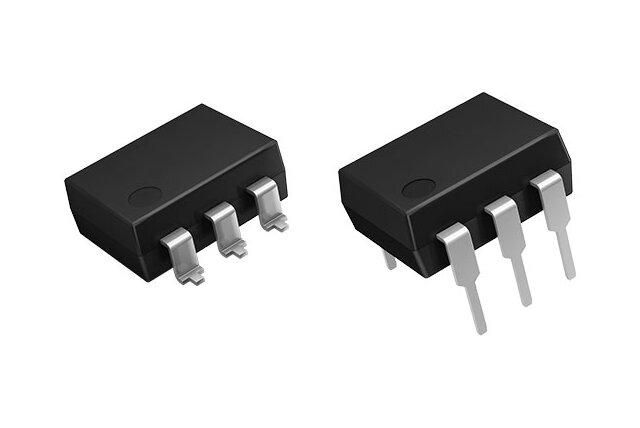

HF series, High functioned - with low ON resistance
PhotoMOS® relays

HF series, High functioned - with low ON resistance

Photo-coupled semiconductor relays with optimized, low ON resistance for low power dissipation and high power switching.

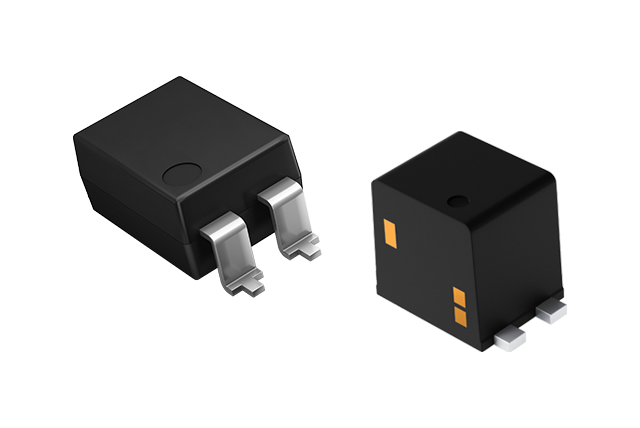

HS, high sensitivity series
PhotoMOS® relays

HS, high sensitivity series

Ideal for battery powered devices & measurement equipment.

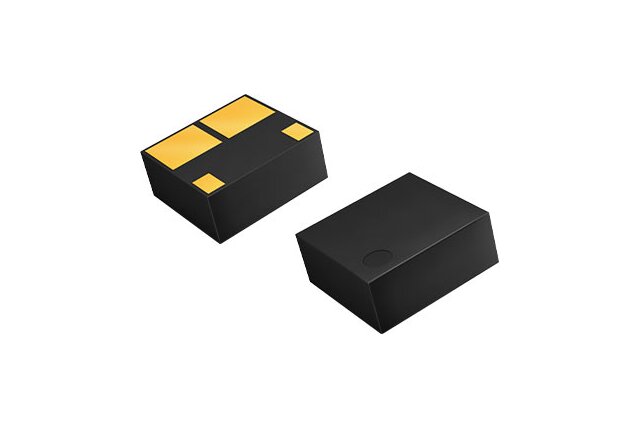

CC series capacitor-coupled relays in a small TSON package
PhotoMOS® relays

CC series capacitor-coupled relays in a small TSON package

Low On-resistance, low output capacitance and low current consumption. Guaranteed performance at high temperature.
Power series in slim package
PhotoMOS® relays

Power series in slim package

Up to 10A switching, DC only and AC/DC dual use available for machine tools, robots,industrial equipment and facilities.
PD series, Power DIP
PhotoMOS® relays

PD series, Power DIP

- Flat package
- DIP4-pin type
- High capacity up to 2A load current

Find the optimal product for your project by selecting attributes and filter criteria
Go to Product Finder

PhotoMOS® technology

Relay: PhotoMOS Technology Panasonic Industry

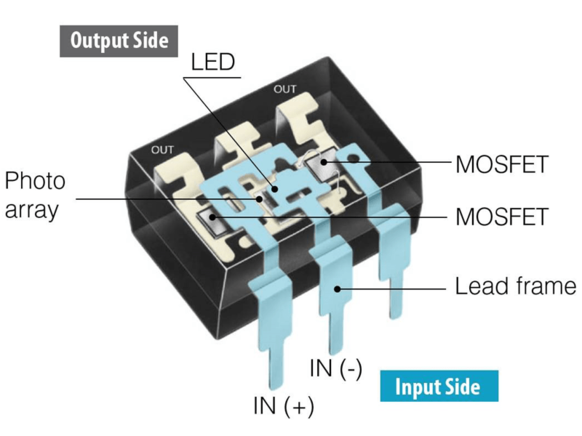

The basic construction of the PhotoMOS® relay can be seen in the illustration. Light emitted from an LED on the input side passes through an isolator that is permeable to light and is detected by a solar cell. Via a trigger circuit, the solar cell‘s output voltage controls the gates of two source-coupled MOSFETs at the output. This arrangement allows PhotoMOS® relays to switch both AC and DC loads. The integration of MOSFET technology in PhotoMOS® relays significantly differentiates them from semiconductor relays with triacs or transistors at the output.

More information

MOSFET relay technology
PhotoMOS® relays

MOSFET relay technology

Learn more about future-oriented semiconductor technology.
PhotoMOS® App
PhotoMOS® relays

PhotoMOS® App

Find the most suitable PhotoMOS® relay for your application - amazingly quick and easy.
PhotoMOS® Whitepaper
PhotoMOS® relays

PhotoMOS® Whitepaper

From basics to applications: download the Whitepaper and learn how PhotoMOS® relays bring reliable and fast switching to future industries.
PhotoMOS® Application Notes
PhotoMOS® relays

PhotoMOS® Application Notes

Can I increase the current rating of a PhotoMOS® relay? Yes, by using the correct output connection! Just read the MOSFET relay application notes.
Our commitment to global sustainability
Company

Our commitment to global sustainability

We are striving to create 'A Better Life, A Better World'.
Discontinued PhotoMOS®

Discontinued PhotoMOS®

Discontinued PhotoMOS® / not for new application.
