FX-500 photoelectric sensor

Thanks to its new “application-specific integrated circuit” (ASIC), Panasonic can solve applications with fiber optic sensors that were previously impossible. Not only can the FX-500 reach a response time of 25µs while providing extremely accurate detection, integrated logic functions save you money because external controllers are no longer needed for normal applications and threshold tracking and self-diagnostic functions save time for maintenance. Moreover, the reliability of the detection has increased by 75% compared to that of previous models.

The customer can choose between digital output types with one or two outputs, or an analog output type.

Characteristics:

• One 4-digit green, one 4-digit red LCD display
• Copy settings via optical interface
• Decreased variations among amplifiers
• Input for external settings, i.e. threshold value (not available for FX-501)
• Up to 8 settings can be saved and loaded (data bank)
• Logical calculation functions
• Light intensity and gain setting for transparent object detection
• Threshold tracking
• Self-diagnosis output
• Display easy readable at angles of up to 60°
• Superior quality fibers (listed in the FX-500 brochure)

Accessories:

• Quick connection cables in lengths of 1, 2 or 5m
• End plates
• Protection cover

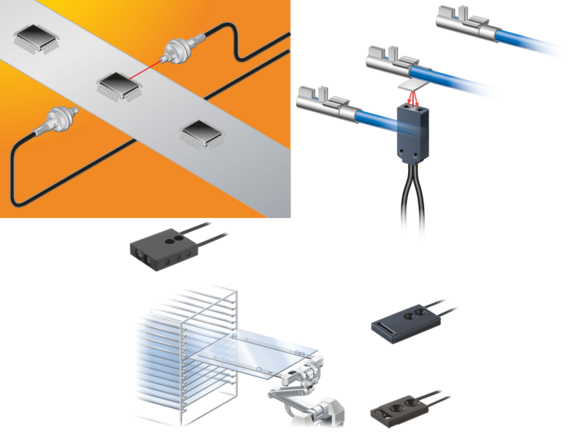

• Counting of IC pins
• Check crimping
• Glass substrate sensing
