PAN1740A (DA14585)
The new PAN170A is the optimized version and the successor of the PAN1740 Bluetooth® module offering a quicker boot time and supporting up to eight connections to allow greater flexibility to create more advanced applications. It can be used as a standalone application processor or as a data pump in hosted systems. Next to all Bluetooth® 5.0 core features it also supports High Duty Cycle and Efficient Non-Connectable Advertising. The device is optimized for remote control units (RCU) requiring support for voice commands and motion/gesture recognition. The PAN1740A offers a very small form factor of 9.0 x 9.5 x 1.8 [mm]. The module is designed to connect small applications to each other or your Smartphone.
Technical Specification
Item |
Performance characteristics |
| Order number | ENW89852A1KF |
| Production status | Mass Production |
| RF category | Bluetooth® 5.0 Low Energy |
| Software/profile | SDK by Dialog |
| Used IC | DA14585 |
| Rx sensitivity | -93 dBm @1Mb/s |
| Tx power max | +0 dBm |
| Antenna option | Ceramic Antenna |
| Size (l x w x h) [mm] | 9.0 x 9.5 x 1.8 |
| Power supply [V] | 2.2 to 3.3 with OTP, 1.8 to 3.3 w/o OTP |
| Power consumption Tx | 4.9 mA @0dBm (3V) |
| Power consumption Rx | 4.9 mA (3V) |
| Power consumption sleep | Full RAM Retention: 4μA |
| Interfaces | GPIO, UART, SPI+, I2C, ADC, 3-axis QD |
| Microcontroller | ARM® Cortex®-M0 |
| Memory | 96kB SRAM, 64kB OTP |
| Speciality | Small Size |
| Evaluation board/stick | 1x Evaluation Board (ENW89852AXKF); 2x Evaluation Boards (ENW89852AWKF) |
| Certification | EU CE RED / FCC / IC |
| Operating temperature | -40 to +85 °C |
| Standard packaging QTY | 1500 pcs |
Evaluation Boards

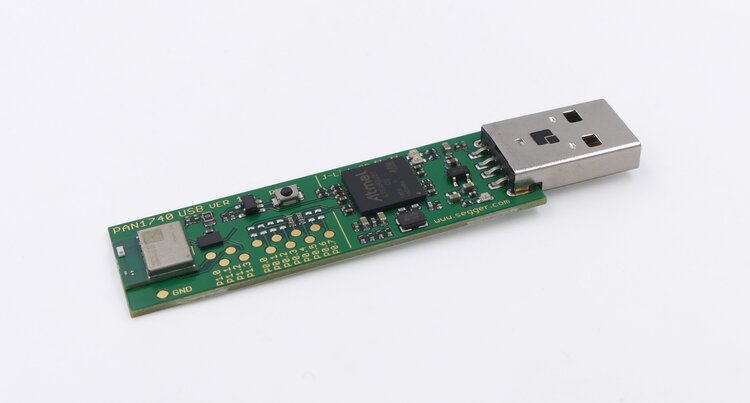

The evaluation board for PAN1740A features
- PAN1740A module
- 1M-bit Flash
- Segger J-Link on-board Debugger
- Access to several GPIOs
| P/N | Package includes | Stock Search |
|---|---|---|
| ENW89852AXKF | 1x PAN1740A evaluation stick | BUY |

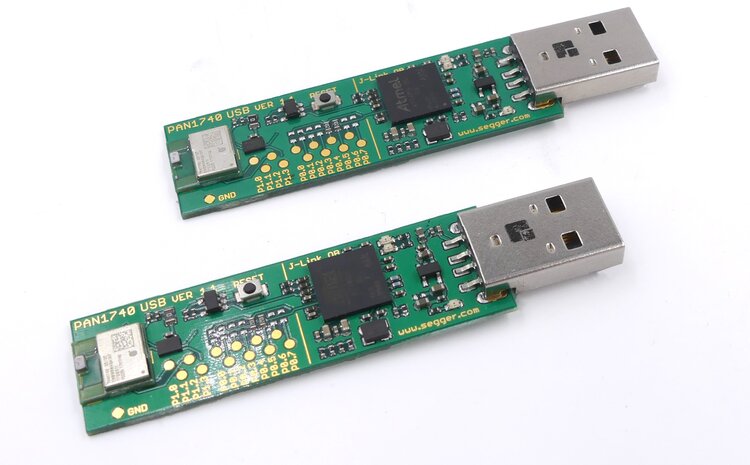

| ENW89852AWKF | 2x PAN1740A evaluation stick | BUY |
Get Started!
For hardware design requirements please have a look at the Module Integration Guide. It is intended to support the easy integration of the module into a product and to ensure the compliance with regulatory requirements
PAN1740A featured in FTM Issue #4 2020
The PAN1740A, was featured in the latest Future Technology Magazine (FTM).
"The PAN1740A is a Bluetooth 5.0 connectivity system-on-chip: it includes a Bluetooth 5.0 transceiver, Arm® Cortex®-M0 microcontroller core, Bluetooth protocol software and associated components, all housed in a compact 9.0mm x 9.5mm x 1.8mm encapsulated package."
