Compressors

The pulse of efficient refrigeration.

At Panasonic Industry, our comprehensive knowledge of compressors for refrigerators, water dispensers, air conditioners, cold rooms and HVAC systems extends beyond technical specifications.
We appreciate the art and functionality of their design and operation. Leveraging our extensive experience, we will guide you in selecting compressors that align with your system’s requirements, ensuring smooth and efficient performance.

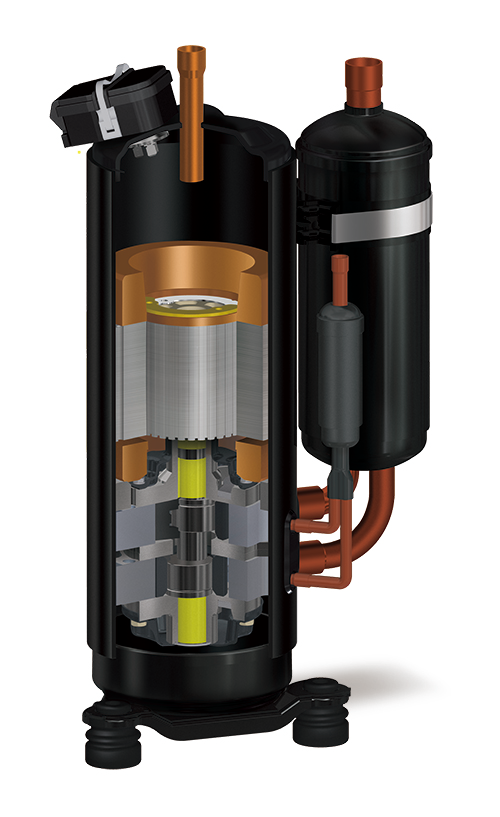

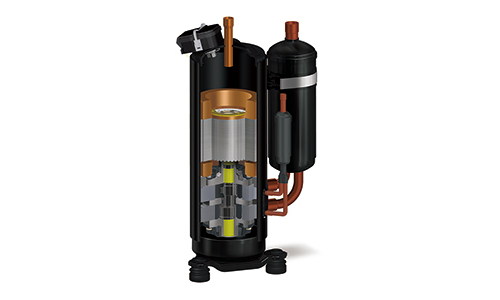

Line-up of rotary compressors

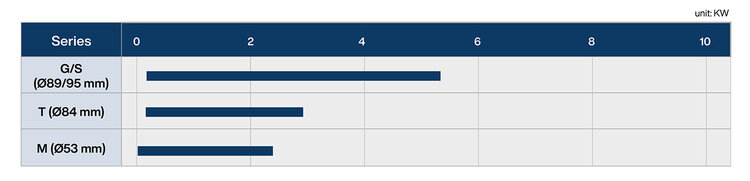

Variable speed, heating capacity

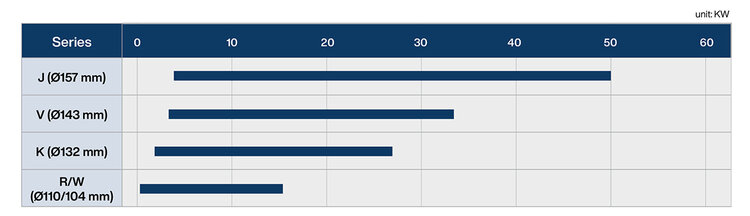

Variable speed, heating capacity

High Efficiency

  • Rare earth magnet

  • Concentrated and distribution winding motor

  • Optimize Ratio Oil/R290



Wide Operating Envelope
  • Up to condensing temperature 80°C for high hot water temperature



Twin Rotary
  • Low vibration and silent
  • High reliability standard

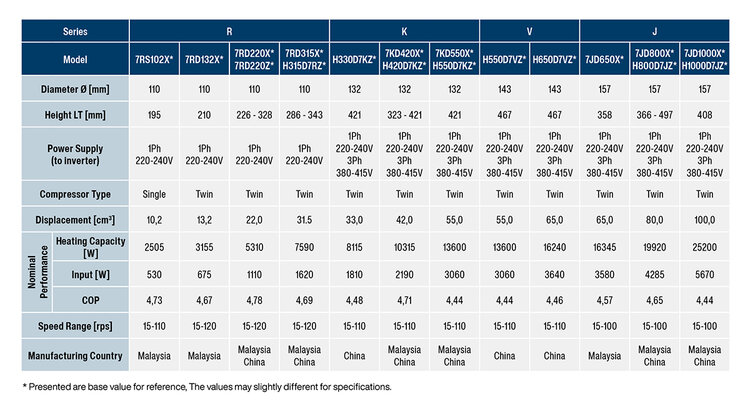

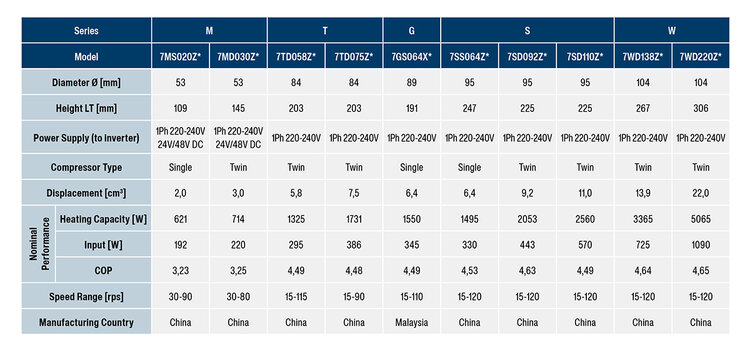

Specifications

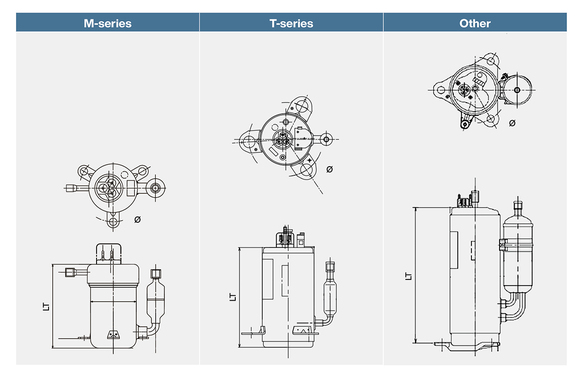

Drawings

Further compressors

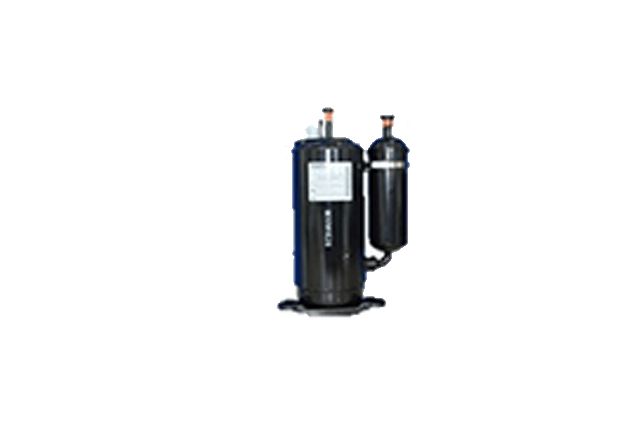

Rotary compressors (fixed speed)
Compressors

Rotary compressors (fixed speed)

Compact design combined with light weight and high efficiency.
Rotary compressors (variable speed)
Compressors

Rotary compressors (variable speed)

High coefficient of performance while maintaining a low level of vibration and noise.

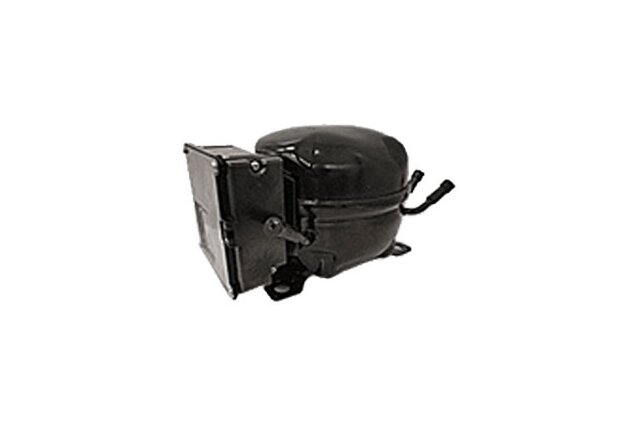

Reciprocating compressors (variable speed)
Compressors

Reciprocating compressors (variable speed)

Wide range of cooling capacity despite ultra-compact size.
Refrigerants for compressors
Compressors

Refrigerants for compressors

Fulfilling new needs and future requirements to protect the climate.
